PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line

1
MOQ
USD
preço
PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line
Características Galeria Descrição de produto Avaliações e Comentários Peça umas citações
Características
Especificações
Modelo de extrusora: Extrusão de um só parafuso
Tamanho do perfil: Max. 2140 mm
Extrusora de parafuso único: SJ 120/35
Matéria-prima: PELETAS de PP
Cortador: CORTADOR DA SERRA
Tensão: 380V 50HZ 3Fase ((Customizado)
inversor: ABB
Aplicativo: Construção
Garantia: 12 meses após a instalação no local local
cor: Dependem da demanda dos clientes
Método de embalagem: Caixas de filme ou de madeira
Destacar:

PVC conduit extrusion production line

,

HDPE pipe making machine

,

PPR profile extrusion line
Informação básica
Lugar de origem: Jiangsu Zhangjiagang
Marca: LB
Certificação: CE,ISO
Número do modelo: LB-95/33
Condições de Pagamento e Envio
Detalhes da embalagem: Caixas de filme ou de madeira
Tempo de entrega: 45 dias
Habilidade da fonte: 15 séries por mês
Descrição de produto
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity
  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components

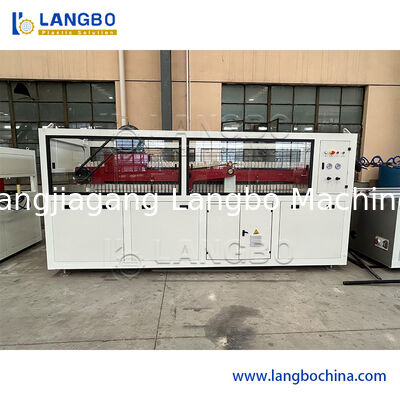

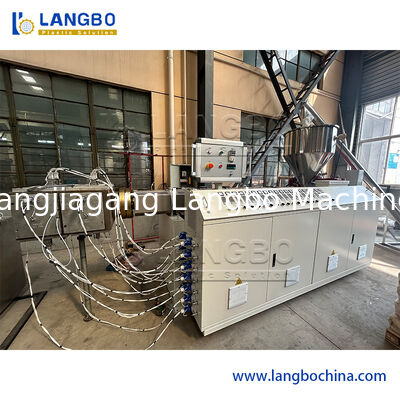

Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line 0

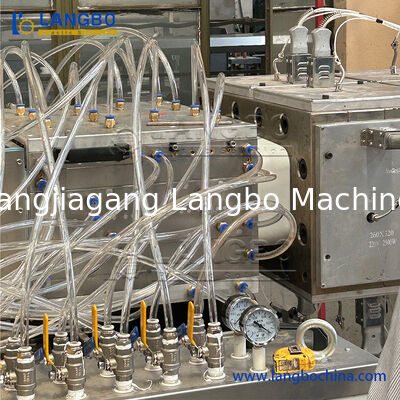

Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line 1

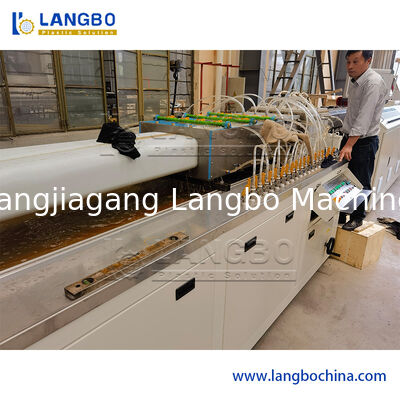

Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line 2
Haul-off System
Provides uniform force distribution across all caterpillars with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line 3
Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line 4 PVC|HDPE|PE|PP|PPR Conduit Garden Tube/Pipe/Hose WPC Window Door Wall Panel/Ceiling /PS Foaming/Fence Profile/Sheet Extrusion Making Production Line 5
Avaliações e Comentários

Avaliação Geral

5.0
Com base em 50 avaliações para este fornecedor

Instantâneo da Avaliação

A seguir está a distribuição de todas as classificações
5 estrelas
100%
4 estrelas
0%
3 estrelas
0%
2 estrelas
0%
1 estrelas
0%

Todas as Avaliações

M
Mehmet Kaya
Turkey Nov 19.2025
Útil (5)
We appreciate the high-temperature washing system and strong drying capacity. The whole line is optimized for continuous operation, and maintenance points are easy to access. Production cost is much lower compared to our previous system.
J
Joel Ramirez
Philippines Aug 21.2025
Útil (12)
The machine runs smoothly, and the pipe quality is reliable. The cutter performs clean cuts without deformation. Ideal for pipe manufacturing.
J
Javier Morales
Spain May 30.2025
Útil (15)
We use the machine mainly for PP conduits, and the slotting precision is consistent. Tool change is quick, and alignment stays accurate. Good build quality and smooth operation.
